We turn ideas into functional designs with a focus on efficiency and durability. Our team works closely with clients to refine details and ensure the best results.
Prototyping brings designs to life, allowing for testing and improvements before full production. This step ensures the final product meets quality and performance standards.
With a focus on precision and reliability, we turn prototypes into finished products. Our manufacturing process ensures consistency, strength, and efficiency for every project.
There are certain unique cast products that can be used in the raw casting state for their intended purpose without any further processing. We are tooled to produce parts in four such product lines. They are Marine Dock Hardware including cast aluminum dock cleats, High Chrome Iron Sleeves, Cast Boat Parts, and Cast Brass Hammers.
Standard Dock Cleats – Aluminum Alloy 356
| Part # | Size | Approx. Length | Approx. Height | Cast Bolt Hole Size | |
|---|---|---|---|---|---|
 | 6-WC | 6 inch | 6.0 | 1.25 | 1/4 |
| 8-WC | 8 inch | 8.0 | 2.00 | 3/8 | |
| 10-WC | 10 inch | 10.0 | 2.50 | 3/8 | |
| 12-WC | 12 inch | 12.0 | 3.00 | 3/8 |

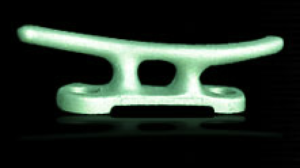

“S” Style Dock Cleats – Aluminum Alloy 356 or Almag 35
| Part # | Size | Approx. Length | Approx. Height | Cast Bolt Hole Size | |
|---|---|---|---|---|---|
 | S-10 | 10 inch | 9.25 | 3.00 | 1/2 |
| S-12 | 12 inch | 11.00 | 3.00 | 1/2 | |
| S-15 | 15 inch | 14.00 | 4.00 | 1/2 |
“Euro” Style Dock Cleat, Aluminum Alloy 356 or Almag 35 – Bronze Alloys Navy M or Aluminum Bronze
| Part # | Size | Approx. Length | Approx. Height | Cast Bolt Hole Size | |
|---|---|---|---|---|---|
 | E-12 | 12 inch | 12.0 | 3.25 | 1/2 |
“Classic” Style Dock Cleat – Aluminum Alloy 356
| Part # | Size | Approx. Length | Approx. Height | Cast Bolt Hole Size | |
|---|---|---|---|---|---|
 | C-12 | 10 inch | 10.20 | 3.25 | 1/2 |
Cord/Hose Holder – Aluminum Alloy 35
| Part # | Size | Approx. Length | Approx. Height | Cast Bolt Hole Size | |
|---|---|---|---|---|---|
 | SHH-1 | 50 feet | – | – | – |
| LHH-2 | 100 feet | – | – | – |
Line Support Aluminum Alloy Almag 35
| Part # | Size | Approx. Length | Approx. Height | Cast Bolt Hole Size | |
|---|---|---|---|---|---|
 | LSPC-1 | – | – | – | – |
There are certain unique cast products that can be used in the raw casting state for their intended purpose without any further processing. We are tooled to produce parts in four such product lines. They are Marine Dock Hardware, High Chrome Iron Sleeves, Cast Boat Parts, and Brass Hammers.
Our Cage Crusher Sleeves come in lengths of 9.25, 12.25, 14.25, and 16.87 inches. All have a 3.50 inch OD and a 1.56 inch ID. The ends can be either flat or flared. The high chrome material is field tested to offer good wear characteristics. We can also supply the mounting bolt hardware for the Sleeves. The primary application has been in limestone quarries but other applications should be equally successful. We can also supply other sleeve sizes upon request.
Application: Heavy Equipment, 18 to 24 pounds, Alloy High Chrome Iron, Spot face ends for flatness.
Application: Heavy Equipment.
There are certain unique cast products that can be used in the raw casting state for their intended purpose without any further processing. We are tooled to produce parts in four such product lines. They are Marine Dock Hardware, High Chrome Iron Sleeves, Cast Boat Parts, and Brass Hammers.
Over the years, we have worked with nearly 50 manufacturers of aluminum fishing boats, pontoon boats, houseboats, and yachts. When a manufacturer needs a part that is not readily available in a catalog, it is necessary to create a custom part for their specific application. We have produced Transom Corner castings, Transom Handle castings, Bow Plate castings, Support Bracket castings, Step Plate castings, and many other custom pieces.
Alloy 535
Alloy 535
Alloy 319
There are certain unique cast products that can be used in the raw casting state for their intended purpose without any further processing. We are tooled to produce parts in four such product lines. They are Marine Dock Hardware, High Chrome Iron Sleeves, Cast Boat Parts, and Brass Hammers.

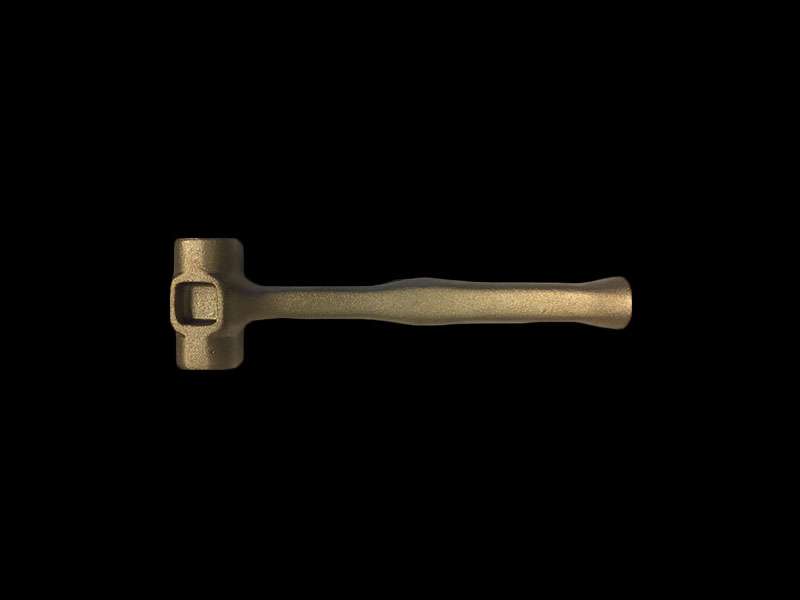

Working around combustible gases requires specialized tools that avoid sparking. One such tool that is most helpful is a brass hammer. Most brass hammers consist of a brass head with the handle section being wood or fiberglass. Our brass hammer is totally brass and cast as a single piece. Our hammer has a total weight of approximately 3.8 pounds. The dimensions are as follows.
Length overall – 11.0 Inches
Head length – 3.25 Inches
Head height – 1.5 Inches
We can also manufacture other brass tools for use in the same environment. Please contact us for further information.
Application: Heavy Equipment, 3.6 pounds, Alloy C865
